Display production

State of the art

High-precision motion systems for the next generation of display production.
Our high-precision motion systems meet the requirements of modern flat panel and micro LED production - where the finest structures, high process speed and maximum repeat accuracy are required.

Motion systems for display production: Precise, controlled movements for high-resolution displays and economical mass production.

Motion systems for display production

Display technologies are developing rapidly: lower energy consumption, higher resolution, more contrast - and all this with increasingly complex production processes. Our motion systems enable precise, controlled movements tailored to speed, cycle time and material requirements for cost-effective mass production.

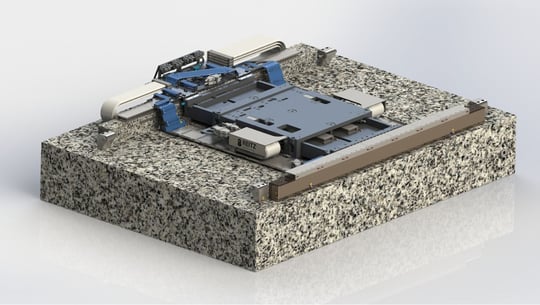

Measuring demonstrator from REITZ Natursteintechnik: Demonstration system for precise granite-based measuring, positioning and movement technology.

Example system

Measuring demonstrator

  • Positioning travel:1400 mm × 1400 mm × 300 mm
  • Tracking error in the nanometre range

X- and Y axis:

  • Air bearing
  • Ironless linear motors and SinCos linear encoders
  • Synchronised cable trailing axles

Z-axis:

  • Base plate made of hard stone for optimum rigidity
  • Spindle drive
  • Gearbox
  • Brake
  • Absolute encoder
  • DCBL Servomotor
  • Also available in versions with linear motor and linear encoders

Controller: 100 kHz Triamec

Close-up of a high-resolution pixel structure for modern displays. Precise manufacturing processes for bright, high-contrast screens.

Rely on motion systems from REITZ

For modern display technologies

Let us develop your solution together.

Fill in the enquiry form now
