Precise movements for the laser industry | Motion Systems from REITZ

Laser head positions itself with high precision over the workpiece on the processing table

Modern laser applications require highly dynamic and precise motion sequences. Our systems enable precise positioning at high speeds - for applications such as laser cutting, microstructuring, drilling or material ablation.

Our systems are based on vibration-damping granite and are equipped with high-performance linear and drive technology. The result: repeatable processing quality with short cycle times under process conditions - reliable and durable.

We supply you with the right platform - as a single axis, gantry or complete motion module.

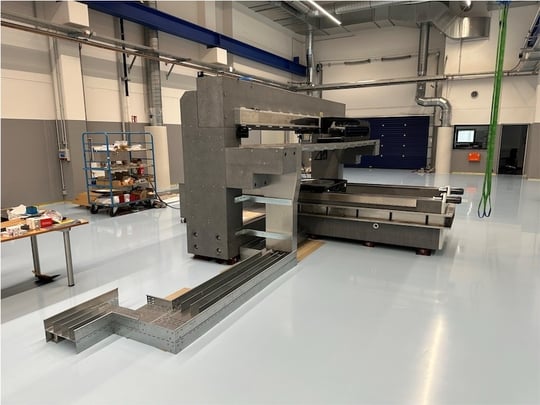

otion system with multiple axes and granite base - customised platform solution under construction

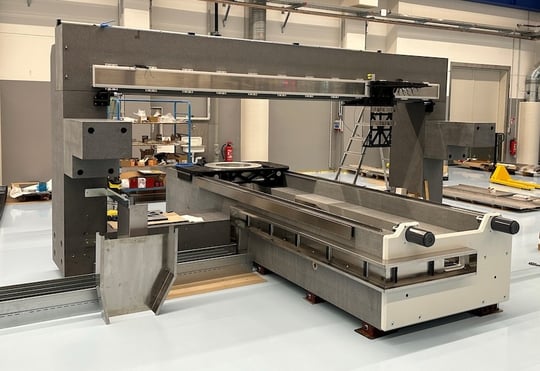

Motion system with visible cable routing and linear axes on granite structure - Machine installation in production hall

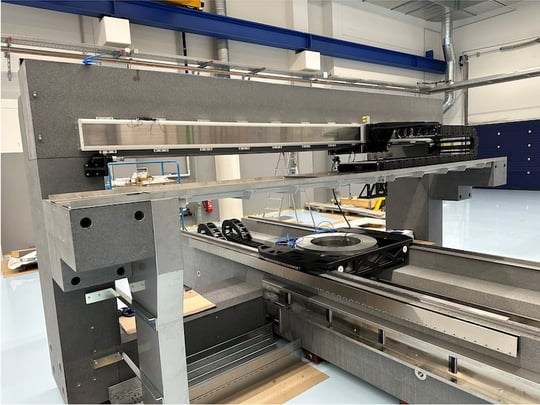

Detailed view of a motion system with mounted rotation axis on granite platform - visible linear drives and cable routing

Z-stage

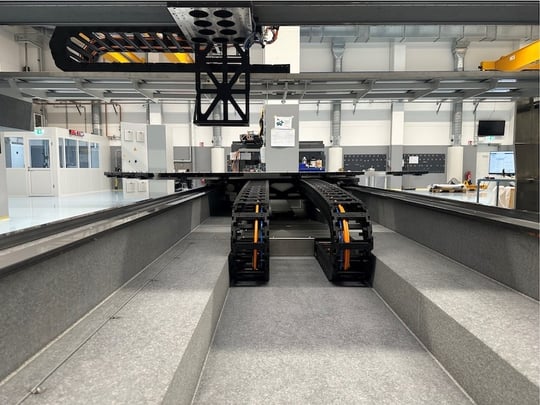

System with U-shaped cable routing and linear axes on granite structure - Installation in modern production hall

Air bearing stage (Y), payload 200 kg, following error >5 nm (ptp)@ 10 mm/s

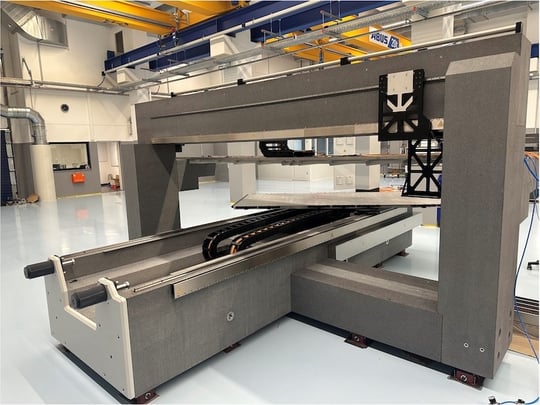

System with hinged worktop for maintenance or integration - Granite substructure with mounted cable management unit

Air bearing stage (X), payload 560 kg, following error >40 nm (ptp)@ 100 mm/s

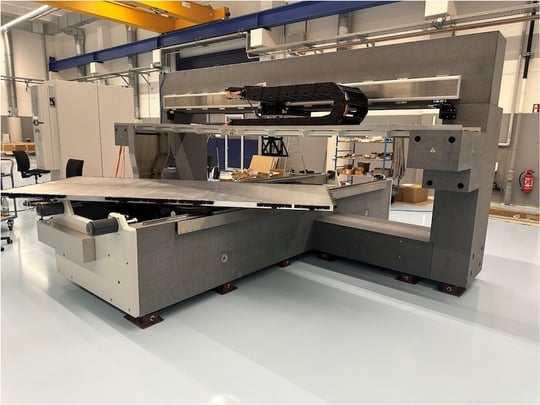

rontal top view of motion system with two parallel guided energy chains on granite base

Gantry design with linear guides on roller bearings
Driven by two ironless linear motors in gantry mode
Equipped with rotation axis, worm gear, DCBL motor and absolute encoder
Linear travel: 3700 mm
Rotary travel: endless
Specified accuracy: 5 µm
